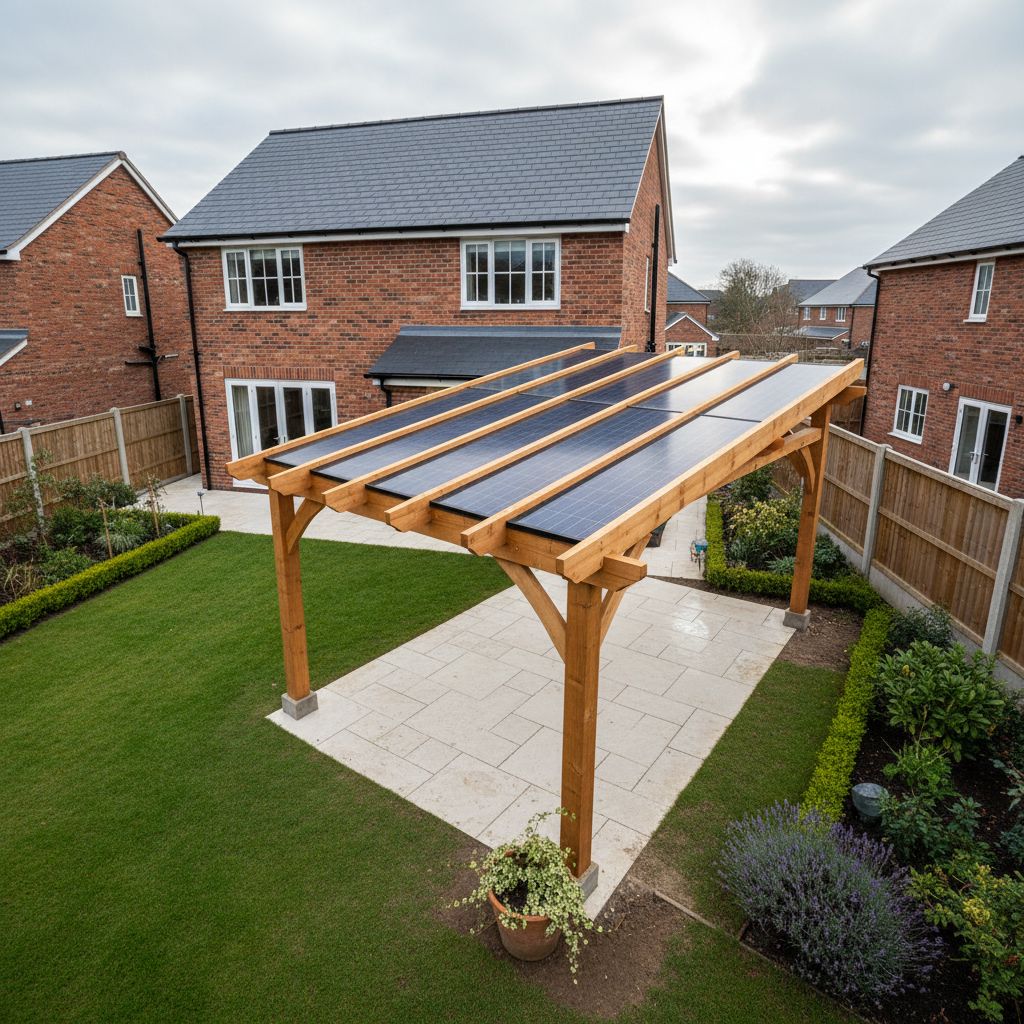

A solar pergola is an outdoor garden structure with photovoltaic modules built into its roof, combining shade and seating space with renewable electricity generation. Rather than simply decorating your garden, this type of pergola works for you—producing clean energy while you relax beneath it.
Key Points
- A solar pergola combines outdoor shelter with renewable energy generation, offering a practical alternative to roof-mounted panels for UK properties with suitable garden space.
- Most UK installations generate between 3,000 and 4,500 kWh annually, potentially saving households hundreds of pounds each year whilst reducing carbon footprint.
- Costs typically range from £8,000 to £20,000 depending on size and specification, with 0% VAT relief and Smart Export Guarantee payments helping to improve the payback period.
- Planning permission is usually not required under Permitted Development rights, though properties in conservation areas or with restrictive covenants should check with local authorities first.
What Is a Solar Pergola?
The structure differs from a standard pergola in two key ways. First, the roof incorporates solar panels instead of open slats or fabric. Second, the framework must be substantially stronger to support the extra weight.
You can choose between a purpose-built integrated design or retrofit panels onto an existing pergola. Placement is flexible: attach the structure to your house wall or position it freestanding anywhere in the garden. For UK installations, keeping the overall height below 2.5 metres typically means you can proceed under Permitted Development rights without a planning application.
A typical pergola footprint accommodates around 11 panels rated at 400W each, creating a system between 4.4kW and 5kW—roughly equivalent to a standard domestic roof installation.
Is Your Property Suitable?
A suitable property needs adequate south-facing space, minimal shading and ground conditions that can support a sturdy foundation. Before committing to a solar pergola, you should assess these factors carefully.
Start by checking your garden’s orientation. South-facing areas receive the most sunlight throughout the day, while east or west aspects still work but generate less energy. Walk around your garden at different times to spot shadows cast by trees, fences or neighbouring buildings—even partial shading can reduce panel output significantly.
Structural requirements matter just as much. Solar panels, mounting rails and potential snow loads add considerable weight. European Green Oak handles heavy loads better than pressure-treated softwoods and resists decay naturally. Your foundation also needs attention: concrete bases with post shoes protect timber from ground-level moisture far better than burying posts directly in soil.
Finally, check any restrictive covenants on your property, as newer estates sometimes ban visible solar structures.
Do Solar Pergolas Work Well in the UK?
Solar pergolas work well in the UK, producing roughly 800–1,000 kWh per kWp each year under typical British conditions. That output matches roof-mounted systems when the panels face south and sit at a suitable angle.
A tilt of at least 15 degrees is considered the practical minimum for UK installations, helping rain wash dirt from the glass while still capturing useful sunlight. Steeper angles, up to around 50 degrees, can boost winter harvest.
The real benefit of a pergola lies in location freedom. If your roof is shaded, north-facing, or structurally unsuitable, a garden structure sidesteps those limits. A standard footprint of around 4 × 5 metres can support 11 or 12 panels, delivering a 4–5 kW system.
However, off-the-shelf pergola kits rarely cope with the weight of modern 400 W panels over a 20-year lifespan. Heavy-duty notched timber frames, where beams slot into posts rather than bolt across them, provide the strength required for long-term reliability.
Benefits and Drawbacks
Solar pergolas offer clear advantages alongside notable trade-offs that homeowners should weigh carefully.
On the positive side, a household benefits from solar power through lower energy bills and a reduced carbon footprint. The structure also creates usable outdoor living space and can lift property value.
However, initial costs run higher than standard roof-mounted panels. Timber choice affects longevity: softwood typically lasts 10–15 years and may twist, while oak remains stable for 20–50 years or more. Lean-to designs fixed to a house wall carry extra risk; timber movement can loosen fixings and tilt the panel array. Freestanding units avoid this problem but need more ground space.
Regular maintenance—sealing, checking for rot—keeps panels aligned and the frame sound. Installation requires precise assembly, often with pre-cut notches, so professional fitting is worth considering.
How Much Power Can a Solar Pergola Generate?
A solar pergola is a dual-purpose structure that provides shade while generating electricity. Most domestic installations in the UK produce between 1 and 3 kWp, enough to cover a good portion of your household’s daytime energy needs.
The actual output depends on several factors: pergola size, panel count and the angle at which panels sit. A 15-degree pitch is widely regarded as the practical minimum for UK conditions, balancing decent energy capture with an attractive, low-profile look.
Smaller setups carrying four panels can work with standard 4×2 timber frames. Once you move beyond this—say, nine to 12 panels—the structure needs heavier timber and more robust anchoring. Post shoes or subterranean footings become necessary to handle the extra weight and resist wind uplift.
Annual yields vary by location and shading, but a well-positioned 3 kWp pergola might generate around 2,500 kWh per year in southern England.
How Much Does a Solar Pergola Cost?
A solar pergola is an outdoor structure that supports photovoltaic panels while providing shade and shelter. In the UK, prices typically range from £2,100 for a basic retrofit kit to £11,500 or more for a fully integrated aluminium system with battery storage.
The total cost breaks down into two main parts: the structure itself and the solar equipment. A pressure-treated timber frame costs less upfront but may need replacing sooner than aluminium, which lasts longer but adds £1,000–£3,000 to the price. Individual panels average around £702 each including installation, and most mid-sized pergolas hold three to five panels.
Labour accounts for roughly 30–40% of your bill. Hidden costs include battery storage (£2,500–£5,000) and wiring for EV charging points.
A typical setup saves £160–£270 yearly on electricity. You can also earn through the Smart Export Guarantee by selling surplus power back to the grid, improving your long-term return.
How Much Can You Save?
Savings from a solar pergola depend on system size, location and how much electricity you use at home. Most UK households with a typical 1–2 kW pergola-mounted array can expect to trim between £160 and £270 off annual energy bills.
Several factors shift that figure. South-facing gardens in sunnier regions generate more power, while shading from trees or buildings cuts output. The Smart Export Guarantee (SEG) adds extra income when you sell surplus electricity back to the grid; rates currently range from around 4p to 15p per kWh depending on your supplier.
Payback periods usually fall between eight and 12 years. Choosing DIY kits with pre-drilled fixings reduces labour costs, while opting for naturally durable timbers such as British larch or Douglas fir avoids recurring treatment expenses over a 20-year-plus lifespan. Factor in the dual value of shading and shelter, and the overall return often outpaces a standalone ground-mounted array.
Available Grants and Incentives
Grants and incentives for solar pergolas do not exist as a standalone category, but broader solar panel schemes can help reduce your costs. The main programmes focus on the panels and inverter rather than the pergola structure itself.
In England, low-income households may qualify for ECO4 or the Warm Homes Local Grant if their property has an EPC rating between D and G. Wales and Scotland run separate schemes, though Home Energy Scotland stopped funding standard solar PV in June 2024.
All UK homeowners currently benefit from 0% VAT on solar panel installations, but this relief expires in March 2027, reverting to 5%. Once your system is running, the Smart Export Guarantee lets you earn money by selling surplus electricity back to the grid. Next, consider the materials—pergolas for sale at Close The Deal include aluminium and steel frames suited to panel mounting.
Choosing the Right Solar Panels
Choosing the right solar panels means matching panel type, weight and output to your pergola’s structural limits. Most residential pergola roofs can safely hold around 10 standard panels, giving you between 2.5 kW and 4 kW of generating capacity—enough to make a noticeable dent in household bills.
Monocrystalline panels offer the highest efficiency per square metre, while polycrystalline versions cost slightly less but need more space for the same output. For timber or aluminium frames, weight matters: a typical 400 W panel weighs 15–25 kg, so confirm your structure can handle the total load before ordering.
Bifacial modules suit pergolas particularly well because they capture reflected light bouncing off patios or pale gravel below. Semi-transparent options let daylight filter through, keeping the space beneath bright and pleasant. Whichever type you choose, ensure posts are sunk into the ground rather than bolted to surface shoes—this distributes weight more reliably over time.
How Many Panels Do You Need?
The number of solar panels you need depends on your energy goals and your pergola’s size. Most UK timber pergolas comfortably support three panels, which has become a practical benchmark for garden structures.
A typical UK household uses between 2,700 and 4,000 kWh of electricity per year. Three standard 400W panels can generate roughly 1,000–1,200 kWh annually in average British conditions, covering a meaningful portion of daytime use. Each panel measures approximately 1.7m by 1.1m, so you will need at least 5.6 square metres of usable roof area.
Your timber frame must handle the load. Roof rafters of at least 150mm by 50mm are advisable when supporting glass panels and mounting hardware. If your pergola allows for more panels and your posts are sturdy enough, installing extra capacity lets you earn through the Smart Export Guarantee.
Designing for Maximum Efficiency
Designing for maximum efficiency means matching every structural choice to your site’s orientation, the UK’s weather patterns and the weight of solar glass. The clearest gain comes from facing panels south at a tilt of at least 15 degrees—steep enough to shed rain and debris while capturing low winter sun.
Frame strength matters more than many off-the-shelf kits allow. Solar glass panels are heavy, so rafters should be at least 100 × 50 mm (4 × 2 inch) timber for arrays of nine panels or more. Notching each rafter with a circular saw and chisel creates a flush seat that spreads load evenly.
Foundations need equal attention. Excavated posts set in concrete resist wind-lift far better than bolt-down shoes, which can loosen on exposed sites. Pair solid anchoring with bifacial panels over light-coloured paving, and reflected light can lift overall yield by up to 10 per cent.
Planning Permission Requirements
Planning permission requirements determine whether you can install a solar pergola without a formal application. Most homeowners in the UK benefit from Permitted Development (PD) rights, meaning no planning consent is needed provided certain conditions are met.
If your structure sits within 2m of a property boundary, it must not exceed 2.5m in total height—including any raised platform or decking beneath it. Beyond that 2m zone, slightly taller structures may be acceptable, though local rules vary. The pergola and any other outbuildings combined must not cover more than 50% of your original garden area.
PD rights do not apply to flats or maisonettes, so residents in these properties need full planning approval regardless of size. Some councils impose Article 4 Directions, removing PD privileges in specific streets or zones. Always check with your local planning authority before building.
Installation Process
The installation process is a structured sequence of groundwork, framing and electrical commissioning that typically spans around two weeks. A professional site evaluation comes first, assessing ground conditions, drainage and slope to determine the best foundation approach.
Foundations generally use either post shoes bolted to concrete pads or direct burial in compacted aggregate. Post shoes offer better drainage and help prevent timber rot, making them preferable on damp sites. Once foundations are set, the frame goes up. Carpenters cut notched ‘housing’ joints where beams meet posts; these transfer panel weight through the timber structure rather than relying solely on fastener strength. All heavy-duty coach bolts and Spectre screws need pre-drilled pilot holes to avoid splitting under wind loads.
On sloping ground, installers adjust upright post lengths to keep the solar array level. After framing, panels are mounted and wired. Electrical work creating new circuits must meet Part P building regulations—only an MCS-certified installer or local building control can sign off grid connection.
Maintenance and Care
Maintenance and care is a straightforward routine that protects both your investment and your energy output. Clean the solar panels twice yearly with plain water and a soft brush to remove dust, bird droppings and pollen that can reduce efficiency by up to 25 per cent.
For the timber frame, inspect posts and beams each spring for signs of rot, particularly around post shoes where moisture collects. Re-stain or oil the wood every two to three years to guard against weathering. Check that M12 coach bolts and other heavy-duty fixings remain tight; seasonal expansion can loosen hardware over time.
Climbing plants need pruning after summer to stop them shading panels or concealing rusted fixings. Clear any integrated guttering channels of leaves before autumn rains arrive. Most panels carry 25-year performance warranties, while structural guarantees typically cover 10 to 15 years.
Frequently Asked Questions
Frequently asked questions are short answers to common queries about solar pergolas. Below are the points UK homeowners ask most often.
Can I fit panels to an existing pergola? Only if the frame is heavy-duty. Standard decorative pergolas rarely handle the dead load of glass panels or resist wind uplift.
What timber works best? Slow-grown spruce is more stable than pine, with fewer knots and less warping, so mounting rails stay aligned.
Does the roof need to be perfectly level? Yes. Installers use laser levels and string lines because even slight unevenness can cause micro-cracks in solar cells.
How often should I clean panels? Once or twice a year is usually enough in the UK, though nearby trees may mean more frequent washes.
