Mini Digger Sizes & Width Chart: Access Guide for UK Jobs

Mini diggers are compact excavators weighing up to 8 tonnes, and choosing the correct size depends on your site access, transport options and digging requirements. In the UK, machines fall into three broad categories: micro (under 1 tonne), mini (1–3 tonnes) and midi (3–8 tonnes). Micro units often have retractable tracks narrow enough to fit through a standard 760mm doorway. Mini diggers around 1.5 tonnes hit a practical sweet spot—they're towable behind most 4x4s without a specialist licence, provided your gross train weight stays under 3,500kg. Midi machines offer greater reach and power but need commercial transport. Understanding mini digger sizes helps you match the machine to both the job and the journey to site.

Key Points

Mini digger sizes in the UK range from micro (under 1.5 tonnes) to midi (3–6 tonnes), with width and digging depth increasing alongside weight class.
Micro diggers under 1.5 tonnes fit through standard 900mm garden gates, making them ideal for domestic landscaping and tight urban plots.
The 1.5 to 3 tonne category is the most commonly hired in the UK, offering a practical balance between manoeuvrability and digging power for driveways, ponds and foundations.
Choosing the right size depends on measuring site access, assessing ground conditions and matching digging depth to your project requirements.

Mini Digger Sizes at a Glance

Quick-reference table: weight, width, digging depth, typical use
UK market categories from micro to midi
Immediate answer to the core search query
Zero tailswing (ZTS) vs. conventional swing: Impact on working in confined spaces near walls
Towing and Licensing: The 3.5-tonne gross train weight limit for standard UK driving licenses
Threshold and Height Constraints: Accounting for roll-over protection structures (ROPS) and narrow gate access
Attachment versatility: Matching machine size to heavy-duty tools like breakers, augers, and stump grinders

Micro Diggers (Under 1.5 Tonnes)

Micro diggers are compact excavators weighing between 0.8 and 1.5 tonnes, designed specifically for confined spaces where larger machines cannot operate. Their narrow build allows them to pass through standard 900mm garden gates and even interior doorways, making them ideal for domestic landscaping, drainage work and tight urban plots.

These machines feature retractable undercarriages that shrink to widths of 700–750mm for access, then expand outward to provide stability during digging. A folding ROPS (Roll Over Protective Structure) lets the cab lower to pass beneath restricted head heights, which proves particularly useful for indoor basement renovations. Zero-tail-swing models prevent the rear of the cab from striking walls when rotating in narrow alleys.

Digging depth varies across the class: 0.8-tonne models typically reach around 1.7 metres, while 1.5-tonne versions can dig down to approximately 2.2 metres. Hydraulic attachments such as breakers handle concrete floor removal, and earth drills simplify fencing installation.

Selecting the right mini digger depends on balancing size against task requirements. For transport, models up to 1.5 tonnes are towable on a standard 3.5-tonne plant trailer behind a suitable 4×4 or commercial vehicle, keeping logistics straightforward for smaller contractors.

Mini Diggers (1.5 to 3 Tonnes)

Mini diggers in the 1.5 to 3-tonne range are compact excavators that represent the most commonly hired category in the UK. They offer the best balance between manoeuvrability and genuine digging power for domestic and light commercial projects.

This weight class handles a wide variety of tasks: driveway excavations, garden pond construction, utility trenches and foundation work. The dig depth increases noticeably across the range, from roughly 2.2 metres on a 1.5-tonne machine to around 2.5 metres on a 3-tonne model. That upper figure matters because UK building regulations often require strip foundations to reach depths where the soil is stable and frost-free.

Transport logistics differ depending on which end of the range you choose. A 1.5-tonne digger typically weighs around 1,490 kg, making it towable on a standard plant trailer behind many vehicles—including those covered by pre-1997 driving licences. A 3-tonne machine, by contrast, can weigh upwards of 2,600 kg and demands a heavy-duty 4×4 with sufficient towing capacity.

Site access is another consideration. Larger models in this bracket may struggle with narrow side gates or low garage openings. Some machines feature folding roll-over protective structures (ROPS) to reduce height, but it pays to measure your access points before booking.

With compatible attachments such as hydraulic breakers, these diggers handle light demolition as well as earthmoving, adding flexibility to most residential projects.

Midi Excavators (3 to 6 Tonnes)

Midi excavators (3 to 6 tonnes) are mid-sized machines that bridge the gap between compact mini diggers and full-scale heavy plant. They offer the digging power needed for medium-scale groundworks while remaining transportable on a standard beaver-tail plant trailer.

These machines suit commercial builds, large-scale landscaping and foundation work where smaller units struggle. A typical 5-tonne model delivers greater digging depth, longer reach and stronger breakout force than a 1.5-tonne digger, making it the workhorse for multi-day site preparation rather than quick single-day tasks.

Midi excavators can run heavy attachments that smaller machines cannot handle. Hydraulic breakers, augers and pallet forks all become viable, turning one machine into a multi-purpose tool. Zero tail-swing models in this range allow operators to work flush against walls or timber frames without risking collisions.

Width is a key consideration. Most midi excavators measure between 1.5 m and 2 m across, which rules out passage through standard garden gates. Site access must be planned accordingly, and ground conditions should support the heavier operating weight.

Enclosed cabs with ROPS and FOPS protection come as standard, offering a safer working environment than open-canopy micro diggers. Hire rates and operator skill requirements are higher than for smaller machines, reflecting the increased capability.

Larger Excavators (6 Tonnes and Above)

Larger excavators weighing six tonnes and above sit outside the mini digger category and are built for commercial construction and civil engineering projects. These machines offer far greater digging reach, hydraulic power and bucket capacity—often exceeding 45 cubic feet—making them suited to major earthworks and demolition.

The added weight demands integrated counterweights for stability when lifting heavy loads. Steel tracks often replace rubber versions for durability on rough terrain. Transport becomes more complex too; a low-loader is typically required because standard trailers cannot cope with the mass.

Operators generally need a CPCS card or equivalent certification. Ground damage is a genuine concern, so these machines are unsuitable for confined residential sites.

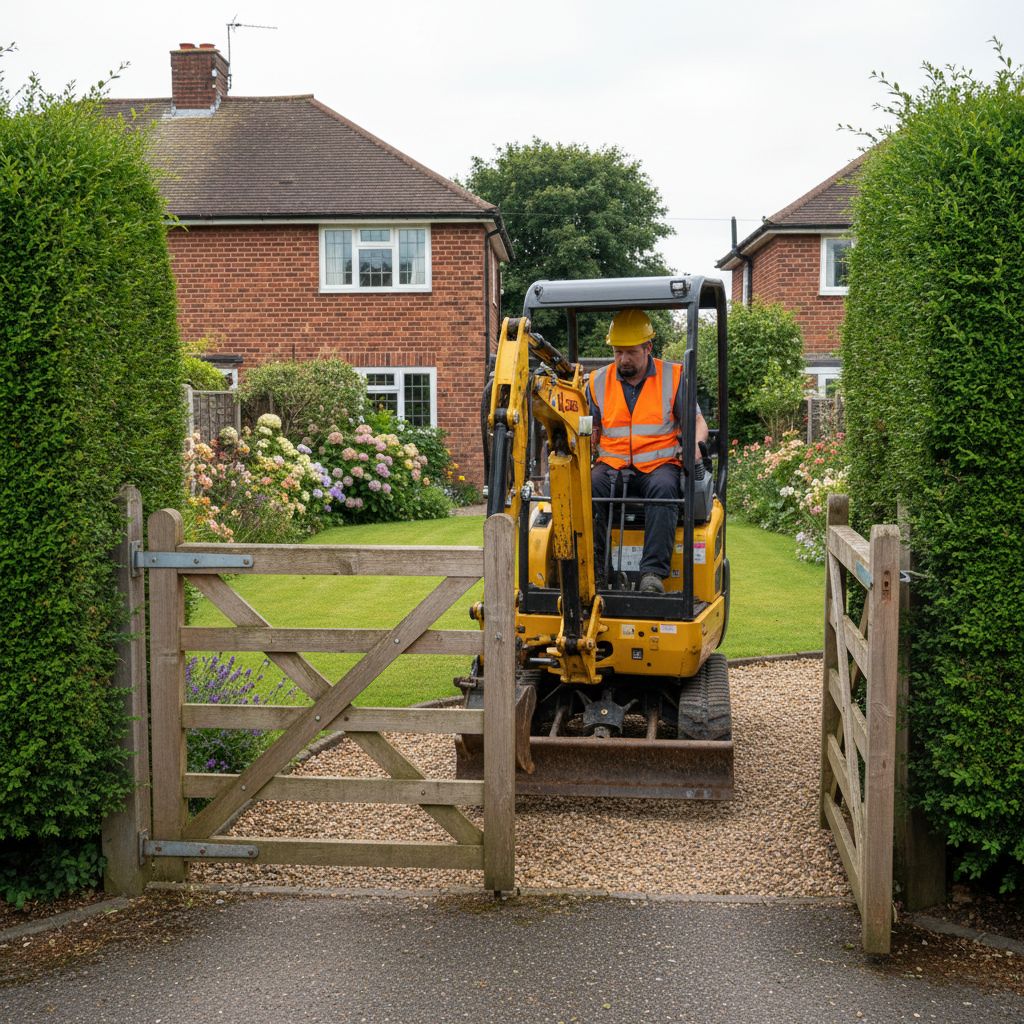

How Width Affects Access and Manoeuvrability

Width is the single biggest factor that decides whether a mini digger can reach your back garden. A standard UK side gate measures roughly 900mm across, yet a typical 5-tonne excavator needs nearly 2,000mm of clearance—far too wide without removing fencing or boundary walls.

Smaller machines offer a practical alternative. Micro diggers in the 0.75–1 tonne range can retract their tracks to under 700mm, narrow enough to pass through internal doorways or tight alleyways. This flexibility comes at a cost: retracted tracks reduce stability and limit digging depth compared with 1.5–2 tonne models.

Once through the pinch point, operators must extend the undercarriage before starting work. Digging with tracks still retracted risks tipping, especially on uneven ground. The wider stance also spreads weight more evenly, protecting soft lawns and paved pathways from concentrated pressure damage.

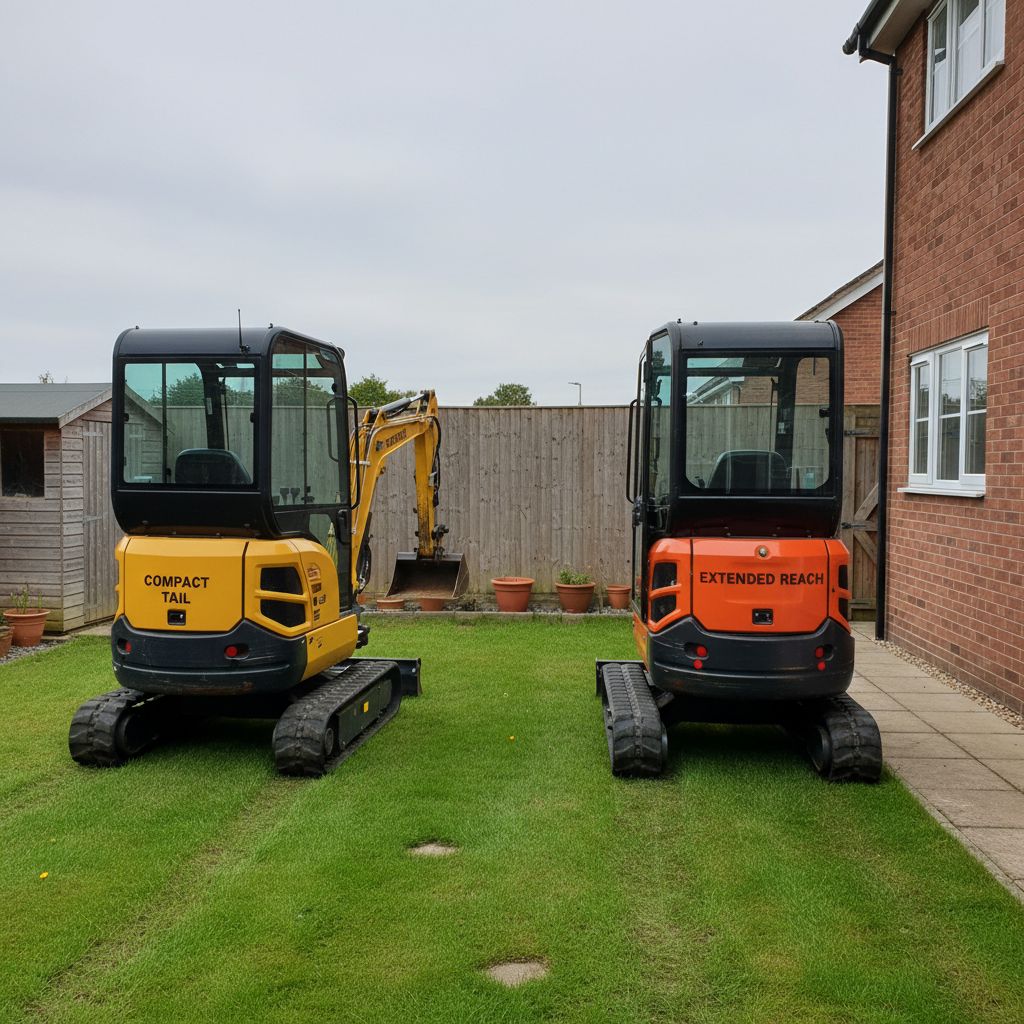

Two design terms matter here. Zero Tail Swing means the rear of the cab stays within the track width when rotating, useful in confined spaces. Reduced Tail Swing allows slight overhang, trading a little clearance for greater cab comfort. Choosing the right configuration depends on both access width and on-site working room.

Common Applications by Digger Size

Digger size determines which jobs a machine can handle and where it can physically access. Matching the right excavator to your project avoids wasted hire costs and site complications.

Micro diggers (0.8t–1t) suit tight residential spaces. Their tracks retract to around 720mm, narrow enough to pass through a standard side gate. A folding roll-over protection structure lets them work under low ceilings or inside buildings. Typical uses include drainage runs, fence-post holes and small landscaping schemes.

Mini diggers (1.5t) are the go-to choice for house foundations, driveways and pond excavation. A 2.2m dig depth covers most UK building-regulation requirements for domestic footings. These machines also stay within the 3.5t towing limit for older driving licences.

Three-tonne mini diggers reach depths of around 3m, making them suitable for larger extensions or utility trenches. Offset boom arms allow digging flush against walls without constant repositioning.

Midi excavators (5t–8t) tackle site clearance, commercial groundworks and large foundation projects where depth, reach and lifting capacity matter more than access constraints.

How to Choose the Right Mini Digger Size

Choosing the right mini digger size means matching the machine's weight, dimensions and digging depth to your specific site conditions and project goals.

Start by measuring every access point the digger must pass through, including gates, garden paths and doorways. Micro diggers under one tonne often feature retractable tracks, allowing them to fit through standard internal door frames as narrow as 760mm—useful for basement or indoor renovation work.

Next, assess ground conditions. Calculate whether the soil, paving or landscaping can support the machine's weight without causing damage to drainage systems or buried utilities. Softer or fragile ground typically requires a lighter model with lower ground pressure.

Match digging depth to your project needs. A 1.5-tonne machine might dig to around 2.4 metres, while larger models reach deeper.

For tight residential or timber-frame sites, consider a zero-tail-swing model. The housing rotates within the track width, preventing accidental collisions with walls or boundaries.

Finally, evaluate power source requirements. Electric variants suit indoor projects or noise-sensitive urban areas, producing no exhaust emissions and running far quieter than diesel equivalents.

Frequently Asked Questions

Frequently asked questions are short answers to the queries hirers ask most often. Below are the points that come up regularly when people consider renting a mini digger in the UK.

What size mini digger do I need for a garden?

Most domestic jobs—fence-post holes, patio prep or small drainage runs—suit a micro digger under one tonne. Larger landscaping or foundation trenches may call for a 1.5 to three-tonne machine.

What does mini digger tonnage mean?

Tonnage is the machine's operating weight, not its digging power. A heavier digger usually digs deeper and lifts more, but it also needs wider access and firmer ground.

Do I need a licence to operate a mini digger?

On private land, no formal licence is required. On construction sites, employers typically ask for CPCS or NPORS certification to prove competence.

Can a mini digger fit through a standard gate?

Micro models with retractable tracks can shrink to around 0.7 m wide, passing through most side gates. A five-tonne digger needs roughly 2.5 m clearance.
