Optimizing Your Home: Best Practices for Insulating Timber Frame Construction

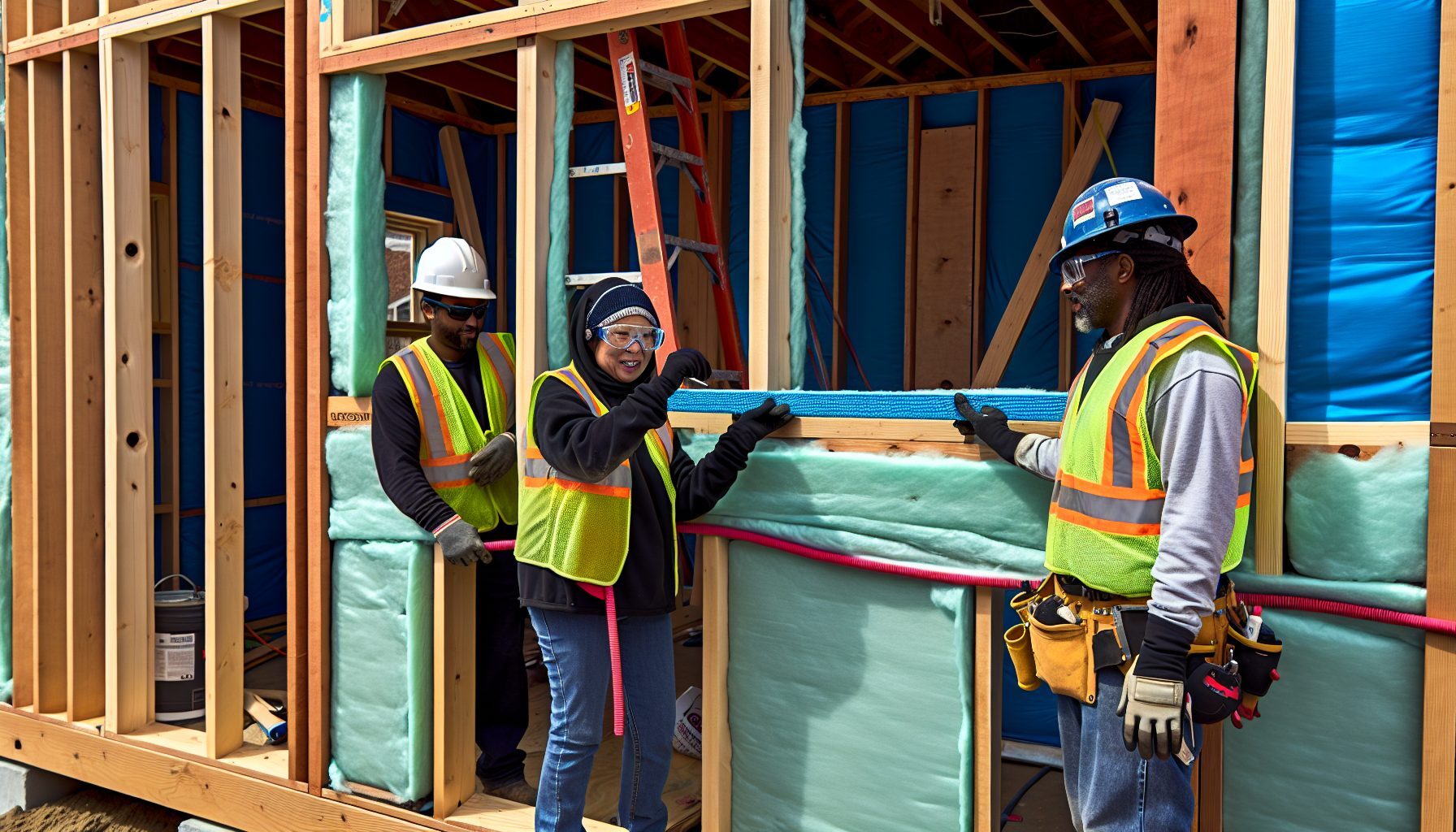

image of person insulating timber framed house construction

Selecting and installing insulation in timber frame homes is key to energy efficiency and indoor comfort. In this article, we address the crucial aspects of insulating timber frame structures, from picking the right materials to applying advanced installation techniques. Expect to understand how to minimize heat loss and manage moisture, ultimately enhancing your home’s performance.

Key Takeaways

  • Choosing the right insulation for timber frame construction is crucial for optimal thermal performance, moisture control, and sound absorption, while avoiding common installation errors is key to the effectiveness of the insulation.
  • A variety of insulation materials is available for timber frames, but mineral wool and PIR insulation are most prevalent due to their properties. Mineral wool is cost-effective and adaptable, while PIR offers high thermal efficiency and counters cold bridging.
  • Continuous external insulation and lightweight cladding are advanced strategies for enhancing energy savings and thermal performance, with additional benefits of aesthetic flexibility and reduced structural weight.

Understanding Timber Frame Insulation Basics

Illustration of timber frame construction with insulation

Timber frame construction, a method often used in timber frame building, is becoming more popular due to its several benefits, such as allowing more insulation between wooden studs compared to traditional masonry. However, it’s not just about the amount of insulation; choosing the appropriate insulation for timber frames is key to achieving optimal thermal performance and moisture control.

The lower mass of timber frame walls presents a difficulty as it necessitates insulation materials that provide superior acoustic performance to compensate. This is a further factor to consider when dealing with timber frame construction. Therefore, grasping the basics of timber frame insulation is not optional, but a significant consideration for any timber frame project.

The Role of Insulation in Timber Frame Buildings

Insulation materials play a significant role in reducing heat loss and improving the thermal performance of timber frame homes. But insulation in timber frame buildings does more than just keep the heat in; it also brings additional benefits like fire resistance and sound absorption. For instance, ROCKWOOL insulation, which is suitable for timber frame, exhibits high fire resistance and provides exceptional sound absorption.

However, simply stuffing insulation materials into the timber frame is not enough. To truly perform, it’s important to eliminate air gaps and guarantee a tight fit. Especially for timber frame walls, which have less mass than masonry walls, the insulation needs to offer enhanced acoustic performance to counterbalance this discrepancy and reduce sound transmission.

Factors Affecting Insulation Choices

The choice of insulation materials for timber frame structures is not something to be taken lightly. Breathability, for instance, holds significant importance as it directly influences how the materials interact with the timber. Another critical factor is the U-value, which serves as an indicator of heat loss through the insulation material. The selection of materials with suitable U-values is essential to ensure insulation effectiveness in reducing heat transfer and improving thermal efficiency.

Yet, the difficulties don’t stop here. Condensation within the timber frame insulation can result in:

  • damage
  • moisture build-up
  • mould growth
  • timber decay

Therefore, managing moisture correctly and ensuring effective ventilation are pivotal in reducing these risks.

Moreover, third-party certification guarantees that the insulation material adheres to recognized standards, verifying its appropriateness and effectiveness.

Selecting the Right Insulation Material

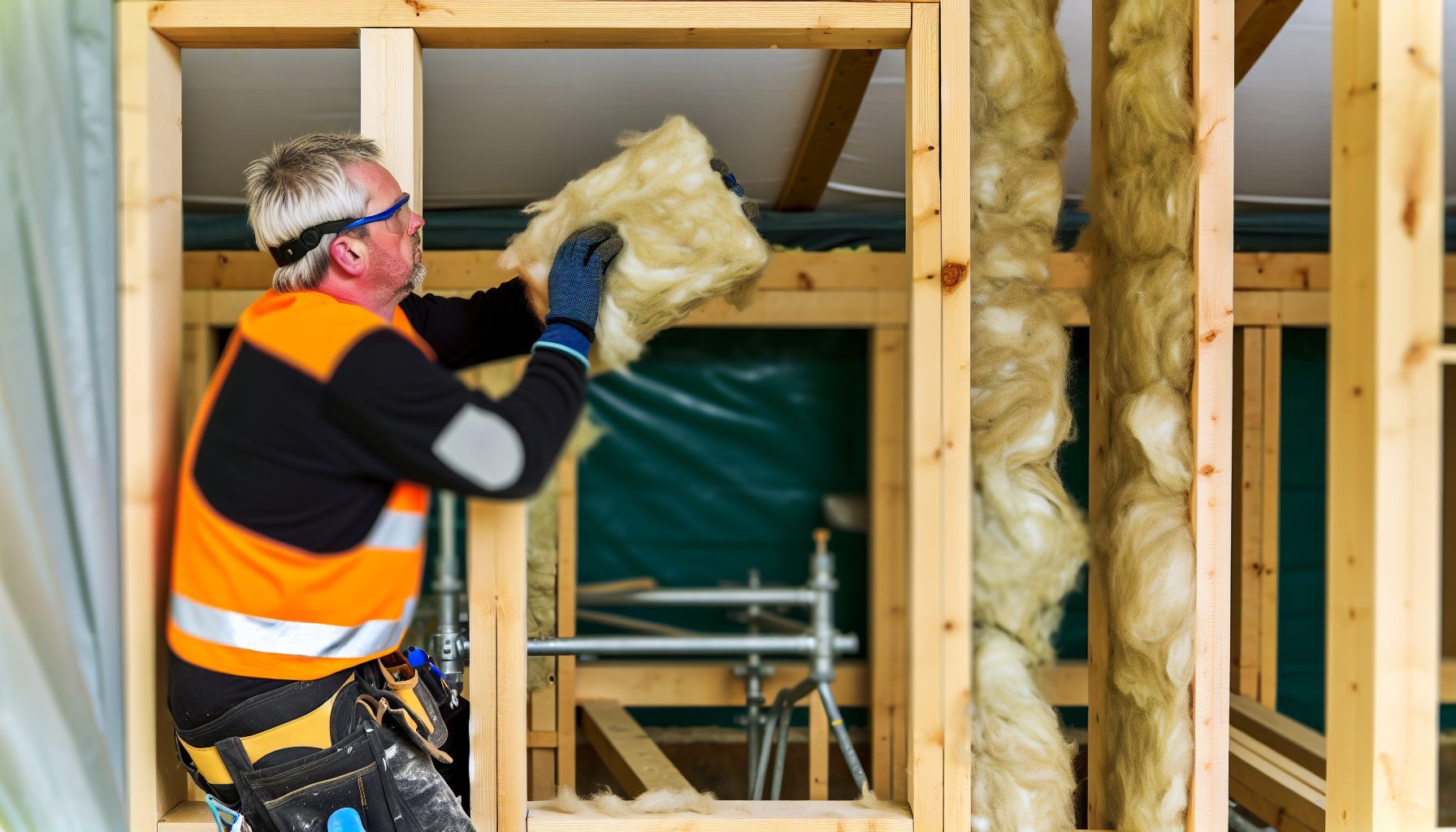

Photo of mineral wool insulation

With the basics and influential factors of insulation choices clarified, we can proceed to the central issue: choosing the appropriate insulation material. The prevalent insulation materials used in timber frame construction are mineral wool insulation and PIR insulation board. While both materials bring their unique strengths to the table, it’s worth noting that mineral wool is a more cost-effective option.

While PIR insulation is more expensive, it can reach significant U-values, which makes it a worthy consideration for those seeking exceptional thermal efficiency. Moreover, increasing the thickness of the external PIR insulation wrap helps to mitigate the impact of cold bridging from the timber studs, leading to a notable improvement in the building’s thermal performance.

Mineral Wool Insulation: A Versatile Choice

Mineral wool insulation, renowned for its exceptional combination of thermal, fire safety, and acoustic properties, is a highly suitable option for timber frame constructions. Some of its advantages include:

  • Its ability to adapt to imperfections during installation, effectively eliminating air gaps
  • Its excellent thermal insulation properties
  • Its fire-resistant qualities
  • Its ability to absorb sound and reduce noise transmission

These qualities give mineral wool insulation an edge over other insulation materials.

Types like Rockwool or stone wool are highly recommended for timber frame buildings due to their exceptional thermal, fire safety, and acoustic performance. Furthermore, mineral wool insulation’s dense fibre structure is highly effective in absorbing sound waves, significantly reducing noise transmission and contributing to the soundproofing of timber frame buildings.

PIR Insulation Board for Enhanced Thermal Efficiency

On the other hand, PIR insulation board offers a different set of advantages. This rigid foam insulation panel, known for its ease of cutting and simple installation, can deliver substantial thermal efficiency. It exhibits up to 15% greater effectiveness in retaining heat compared to other insulation materials, owing to its low thermal conductivity value.

PIR insulation boards are suitable for use in a wide range of areas within timber frame constructions, such as:

  • External walls
  • Roofs
  • Floors
  • Solid masonry walls

They provide excellent thermal performance and can assist in meeting specific U-value requirements for different purposes.

Installation Techniques for Timber Frame Wall Insulation

Illustration of insulation installation techniques

Once the right material is chosen, the focus shifts to installation. Proper installation of insulation in timber frame walls can guarantee comprehensive coverage and reduce heat loss. It’s not just about stuffing insulation into the walls; it’s about ensuring airtightness, which holds significant importance in timber frame buildings.

Airtightness not only improves insulation efficiency but also ensures meticulous installation in hard-to-reach voids. It also ensures proper joining and taping of overlaps between Vapour Control Layers (VCLs). However, the installation process is not always smooth sailing, and typical errors such as inadequate spacing, overlooking ventilation, and improper treatment can occur.

Ensuring Complete Coverage

One of the key objectives during the installation process is to ensure complete coverage. This means filling all voids between external wall studs and noggins with insulation. It’s a meticulous process that requires attention to detail and accurate measurement.

For achieving complete coverage, installing insulation flush with the outer face of the studs and fixing treated softwood battens to prevent board shifting is recommended. Also, a Vapour Control Layer (VCL) should be placed between the insulation and the plasterboard to prevent condensation. It’s also advisable to select non-combustible or highly fire resilient insulation.

Addressing Air Leakage

Air leakage is another factor that can undermine the efficiency of insulation in timber frame buildings. When air escapes through gaps or cracks in the insulation, it can result in heat loss and reduced thermal efficiency. Thus, addressing air leakage is an essential part of the insulation installation process.

Achieving airtightness in timber frame buildings involves the proper installation of an airtight membrane, including taping membrane overlaps, sealing penetrations, and creating a single, continuous, and durable airtight layer over the entire heated area of the building. Materials like Wraptite Tape, Corners, and Liquid Flashing are used to seal gaps between insulation panels and detailing around penetrations, windows, and doors to prevent air leakage.

Advanced Strategies for External Wall Insulation

Photo of continuous external insulation

While the basics of insulation installation are indispensable, there are also advanced strategies that can enhance the thermal performance of timber frame buildings. One of these is continuous external insulation, which involves the addition of an extra layer of insulation externally to the breather membrane, enhancing the building’s thermal efficiency and reducing heat loss.

Another advanced strategy involves the use of lightweight cladding in insulation systems. Lightweight cladding offers diverse finishes for elevation and safeguards the frame and insulation, making it compatible with insulation options such as rockwool, mineral wool, and wood fibre.

Continuous External Insulation: Maximizing Energy Savings

Continuing with the concept of continuous external insulation, it is a strategy that directly impacts energy savings in timber frame buildings. By establishing a continuous layer of insulation that eliminates thermal bridges, it enhances thermal performance and contributes to the preservation of the building’s thermal mass.

The installation of continuous external insulation involves a few different methods, including:

  • Installation during construction or as prefabricated elements
  • Retrofitting insulation externally
  • Retrofitting insulation internally
  • Retrofitting insulation within the depth of the frame

The aim is to disrupt the path of least resistance associated with thermal bridging, ultimately improving energy savings.

Combining Insulation with Lightweight Cladding

Lightweight cladding is a building finish or skin that provides aesthetic flexibility and diminishes the structural weight of buildings, resulting in reduced foundation requirements. When combined with insulation, it offers additional benefits such as thinner wall profiles while preserving thermal performance.

Materials such as wooden weatherboarding or fibre-cement offer the opportunity for classic and modern visual elements, thereby augmenting the exterior appeal of the structure. Moreover, certain types of lightweight cladding materials, such as brick or block cladding, can augment the fire resistance of timber frame buildings, providing an extra layer of safety.

Complementary Components in Timber Frame Insulation

Illustration of complementary components in timber frame insulation

In addition to the primary insulation materials, there are also complementary components that play essential roles in timber frame insulation. Breather membranes, for instance, offer additional defence against weather elements and the infiltration of rainwater. They are usually positioned on the exterior of the insulation and facilitate the release of water vapor from within the building component, thereby improving moisture control.

Acoustic insulation, on the other hand, is designed to diminish impact and airborne sound transmission within timber frame structures, enhancing the overall tranquillity and comfort of the living space. This feature is especially beneficial in residential timber frame buildings where noise control is a vital aspect of the living experience.

Breather Membranes for Vapour Control

Breather membranes serve a critical role in timber frame insulation by providing protection against unfavourable weather and facilitating the release of water vapor from the interior. They are positioned on the outer side of the insulation, repelling water while permitting internal vapor to escape, which is vital for moisture management in timber walls.

Breather membranes not only enhance the overall effectiveness of insulation in timber frame walls but also seal the walls, thereby reducing heat loss, preventing air leakage, and thermal bridging. However, disadvantages of timber frame houses is in the absence of a breathable membrane, moisture may accumulate on the insulation, resulting in mould growth and potential respiratory problems.

Acoustic Considerations: Insulation as a Sound Barrier

Insulation in timber frame structures mitigates sound transmission by absorbing sound waves and decreasing the sound pressure level within the room. This not only reduces external noise but also impact transmission and vibration noise transmission to the timber frame. This results in a significant reduction in noise pollution, both internally and externally.

The most effective materials for soundproofing in timber frame buildings are PIR (polyisocyanurate) boards, mineral wool insulation, and acoustic mineral wool. These materials are recognized for their sound absorption properties and their ability to reduce noise transmission. They offer effective sound insulation and are appropriate for residential use.

Navigating Building Regulations and Standards

Regarding timber frame insulation, it’s unwise to ignore the applicable building regulations and standards. These rules prioritize achieving certain insulation values (U Value) over specifying wall thickness, guaranteeing compliance and peak performance.

It’s also worth noting that these regulations and standards undergo regular updates. For instance, the recent update to Part L requires kit homes to produce 31% less CO2. There may also be regional variations in building regulations, reflecting different approaches to construction across various regions.

Innovations in Timber Frame Insulation

The field of timber frame insulation is not stagnant. It’s continuously advancing, with new materials and techniques altering our perception of what is achievable. Materials gaining recognition in timber frame insulation are mineral fibre (glass or rock), wood fibre/wool, and blown cellulose.

Innovative methods for insulating timber frames encompass strategies such as:

  • Minimizing air leakage
  • Employing cavity wall insulation
  • Utilizing internal and external insulation
  • Incorporating materials like rockwool, PIR, and phenolic insulation.

These advancements not only enhance the thermal performance of timber frame buildings but also contribute to the construction of super-insulated, airtight homes.

Emerging Materials and Techniques

The most recent advancements in insulation materials for timber frame buildings include:

  • ROCKWOOL products, known for their fire resilience
  • Mineral wool insulation that delivers exceptional thermal performance
  • PIR (polyisocyanurate)
  • Kingspan Kooltherm K112 Framing Board

The recommended installation techniques for timber frame insulation endorsed by professionals include the installation of a Vapour Control Layer (VCL) between the insulation to prevent condensation. Another endorsed technique is to fill the thickness of the timber studs with insulation.

Case Studies: Success Stories in Timber Frame Insulation

Innovations in insulation for timber frame are not just theoretical. There are numerous successful applications of timber frame insulation that showcase best practices and innovative solutions. For instance, timber frame suppliers have become increasingly engaged in design, insulation packages, and windows. Companies like ROCKWOOL and Knauf Insulation are providing timber frame wall insulation solutions that offer improved fire resilience, acoustic capabilities, and exceptional thermal performance.

These successful case studies often involve the implementation of external timber frame insulation by YBS Insulation, the use of resilient insulation properties provided by products like Rockwool, and the utilization of advanced insulation systems developed by T?-Mawr. These projects usually entail filling the timber studs with appropriate insulation and surrounding the frame with an additional thinner insulation layer, carried out in a way that minimizes gaps to address thermal bridging and air infiltration.

Summary

Insulation in timber frame construction is a multi-faceted subject that encompasses a wide range of materials, techniques, and considerations. From the selection of the right material to the meticulous installation process, every step plays a crucial role in optimizing the thermal performance, moisture control, and acoustic insulation of the building. With continuous advancements in the field, the future of timber frame insulation promises to be even more efficient and versatile. So, as we continue to build and innovate, let’s remember that every timber frame building is an opportunity to create a comfortable, energy-efficient, and sustainable living space.

Frequently Asked Questions

What is the best insulation for timber frames?

The best insulation for timber frames is breather membranes, as they provide long-term protection against the elements and can be left uncovered for up to four months without losing performance. Additionally, ROCKWOOL insulation is highly fire resistant, which is important when insulating around combustible wood.

How do you insulate an existing timber frame building?

The most effective way to insulate an existing timber frame building is to use external insulation, such as wood-fibre boards, fitted over the external face of the timber frame and sealed to cover any gaps.

Can you cavity wall insulate a timber framed house?

No, cavity wall insulating a timber framed house increases the risk of condensation and potential damage to the frame. It’s not recommended due to the risk of wood rot or corrosion.

What are the prevalent insulation materials used in timber frame construction?

The prevalent insulation materials used in timber frame construction are mineral wool insulation and PIR insulation board. Both materials are commonly used for their thermal and fire-resistant properties.

How does continuous external insulation enhance energy savings in timber frame buildings?

Continuous external insulation enhances energy savings in timber frame buildings by establishing a continuous layer of insulation that eliminates thermal bridges and enhances thermal performance, ultimately contributing to the preservation of the building’s thermal mass.
