The popularity of external timber frames rapidly rises in the UK. And it is for this reason that it’s imperative to understand the intricacies of timber frame external wall construction details. Whether you’re a self-builder, an architect, or a homeowner, this article will walk you through the essentials of timber frame walls, insulation options, vapour control layers, and more. Stay with us as we unravel the complexities of this eco-friendly and energy-efficient construction method. It is also crucial to adhere to building regulations to ensure safety and compliance in timber frame external wall construction.
Key Takeaways
Timber frame external walls are made up of structural studs, sheathing, layers of insulation, and an airtight vapor barrier, all of which help manage moisture and keep the structure strong.
Use softwood or hardwood for studs, plywood or OSB for sheathing. Select breathable insulation materials like mineral wool for better thermal performance, fire safety, and air quality.
Breathable membranes and vapour control layers are vital in moisture control as they maintain the long-term performance of the timber frame structure.
It is recommended to select a reputable supplier with third-party certifications (BBA, CE, ISO) and positive reviews, to ensure compliance with standards, building regulations, and overall project success.
Introduction to External Wall Construction
External wall construction is a critical aspect of building design and construction, and timber frame wall systems have become increasingly popular in recent years. Timber frame walls offer a range of benefits, including improved thermal performance, reduced construction time, and enhanced sustainability. These walls are designed to provide excellent insulation, which helps in maintaining energy efficiency and reducing heating costs.
In timber frame construction, there are two primary types of wall systems: open panel systems and closed panel systems. Open panel systems are delivered to the construction site without insulation, allowing for flexibility in the choice of insulation materials and installation methods. Closed panel systems, on the other hand, come with pre-installed insulation, offering a quicker and more streamlined construction process.
When designing and constructing timber frame walls, it is essential to consider specific requirements such as u values, which measure the thermal performance of the wall. Lower u values indicate better insulation and energy efficiency. By carefully selecting materials and construction methods that meet these requirements, builders can enhance the overall performance of the building and reduce energy consumption.
Timber frame wall systems not only contribute to a building’s energy efficiency but also support sustainable construction practices. Timber is a renewable resource, and its use in construction helps reduce the carbon footprint of the building. By embracing timber frame construction, builders and homeowners can create eco-friendly and energy-efficient homes that meet modern standards and regulations.
Understanding Timber Frame External Walls
Timber frame external walls are composed of structural studs that bear the imposed loads before transferring them to the foundations. One of the advantages of insulated external timber frame walls is their improved insulation performance compared to masonry walls of similar thickness and low embodied energy.
Moisture control and airtightness are crucial for the performance and longevity of timber frame external walls. Proper moisture control prevents the buildup of dampness that can lead to mold and structural damage, while airtightness ensures energy efficiency and comfort.
It is essential for us to understand the theory of detailing for timber frame external wall constructions. This is to ensure adherence to the specification list and the wall’s construction. First, an external breathable membrane is laid over a layer of structural sheathing. This is followed by a primary layer of insulation to fill the voids between the structural studs. The panel studs are then insulated with a secondary layer of insulation. This is further covered by an air-tight vapour control barrier. Each layer plays a crucial role in controlling moisture and air movement within the external timber wall system, protecting the insulation and timber frame structure.

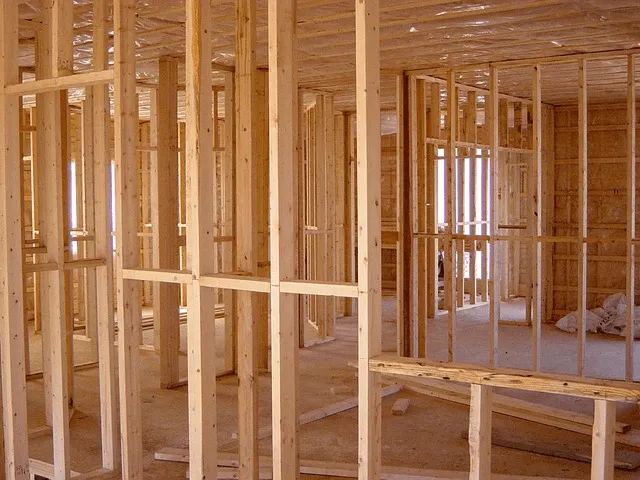

Studs and Sheathing
Timber frame studs are vertical wooden framing members that form part of a wall or partition in a timber frame wall system. They provide support for the sheathing and extend from the foundation plate to the rafter plate, spanning the full height of the building. Studs can be constructed from a range of materials, such as softwood, hardwood, engineered wood, and metal. Softwood studs are more commonly used in residential timber frame wall constructions.
When it comes to sheathing, plywood is the most common material used in timber frame walls for residential construction. Oriented strand board (OSB) on the other hand is a more cost-effective option often used in commercial construction. Properly installed sheathing ensures the stability and integrity of the timber frame structure. Proper sheathing ensures the structural stability of the timber frame structure.
Breather Membranes
Breather membranes are water-resistant yet vapor-permeable materials. They are commonly utilised in external walls, bathrooms and roofs to enable water vapour to escape from inside a building. The also prevent moisture from entering the structure. The external breathable membrane plays a vital role in regulating moisture and air movement within the timber frame wall system, preserving a healthy and comfortable indoor atmosphere. Additionally, breather membranes contribute to maintaining good air quality within the building by allowing proper ventilation and preventing the buildup of harmful moisture.
By managing moisture effectively, breather membranes contribute to the longevity and performance of the timber frame structure.
External Cladding
External cladding comes in a variety of materials, such as wood, metal, brick, stone, vinyl, and composite materials. Each offers their own unique characteristics and advantages. Besides enhancing the aesthetics of the building, external cladding can improve the thermal performance of the external timber wall, limit air leakage, and protect the wall from moisture and other external elements. Different cladding materials offer varying levels of weather resistance, which is crucial for protecting the building from harsh environmental conditions.
Choosing the appropriate cladding material and proper installation can significantly impact the timber frame wall system’s overall performance and longevity.
Insulation Options for Timber Frame Walls
Common insulation options for timber frame house walls include fiberglass batts, mineral wool batts, and rigid foam boards. Mineral wool tends to be the preferred choice due to its superior thermal, fire safety, and acoustic performance. Selecting the right thermal insulation for timber frame walls is crucial to ensure energy efficiency and comfort.
Besides the above characteristics, breathability is also an essential factor to consider. Mineral wool batts are highly breathable, while fiberglass batts are not.
Another crucial factor to consider is the environmental impact of insulation materials. Fiberglass batts tend to have a higher impact than mineral wool batts. Polyisocyanurate (PIR) board and glass mineral wool (GWM) generally have a lower impact.
Breathable Insulation Materials
Breathable insulation materials, such as flexible wood fibre batts, wool, and hemp, are vital to maintaining the desired temperature. These materials also prevent condensation within external timber frame walls. Investing in an attic insulation service can further optimize the performance for homeowners seeking enhanced energy efficiency and temperature control.
Utilising breathable insulation materials offers a range of advantages. From enhanced thermal performance to improved air quality, reduced condensation, and decreased energy costs. Homeowners enjoy overall living comfort in their homes. It also ensures the long-term performance and efficiency of their timber frame structures.
If you’re facing foundation issues, consider reaching out to Above All Foundation Repair for expert solutions to keep your property safe and stable.
Opt for Third-Party Certified Products
Third-party certification is a process where an independent organisation assesses and verifies that a product or service adheres to established standards. Certification provides compliance and assurance to stakeholders. It’s likely that this will be required when securing a mortgage or considering the investment potential of a property.
We believe it is essential to select insulation products with third-party certification. You might have heard of the BBA (British Board of Agrément), CE (Conformité Européenne), and ISO (International Organization for Standardization). This guarantees that the insulation products adhere to the required standards and regulations. It also minimises risks by recognising any non-conformities.
Selecting insulation products with third party certification is an important step in ensuring the quality and performance of the materials used in your timber frame project.
Installing Insulation in Timber Frame Walls
The most common method for insulating timber frame walls is to use a foil-faced foam board or a glass/mineral wool. This is often combined with a foil blanket to enhance the U-values. The insulation is placed between the timber studs, and a vapour barrier is installed to cover it. Proper installation methods are crucial to ensure the insulation performs effectively and maintains the structural integrity of the walls.
We recommend to wait until the timber frame reaches a humidity content lower than 20%. Additionally, the building should be weather tight before installing insulation.
Moisture Control
Moisture control is crucial in timber frame external wall construction, as it ensures that the timber is at an optimal moisture content before installing insulation. This protects the timber frame structure from potential damage caused by excessive moisture. Additionally, monitoring humidity levels is essential to maintain the integrity of the timber and prevent issues related to excessive moisture.
Managing moisture in timber frame external wall construction involves the use of breathable membranes, vapour control layers, and permeable membranes. This effectively prevents moisture from entering the timber frame and reduces the amount of moisture retained within the timber frame.
Filling Voids
Flexibility, airtightness, and complete filling of voids are essential when installing insulation in timber frame walls. A combination of flexible sealant and flexible polyurethane foam can be used to fill the gaps in timber frame walls.
Make sure that the space behind noggins or is fully insulated. Uninsulated areas can cause damage to the services and fixtures. Properly filling voids in timber frame walls maximises insulation and prevents moisture infiltration. Additionally, proper filling of voids helps prevent thermal bridging in timber frame walls.
Closed Panel Considerations
Closed panel systems, which come with insulation pre-installed in the factory, require additional considerations. This is to ensure that the insulation is correctly sealed and that any moisture entering the wall cavity can escape. Accurate and level foundations are necessary for proper support of the panels when it comes to installing timber frame wall section details. Due to the panels’ weight, installation requires a crane for assembly. Factory production of closed panel systems ensures consistent quality and precision, reducing on-site errors and speeding up the construction process.
Carefully consider these factors for proper installation and performance of closed panel timber frame systems.
Vapour Control Layers and Condensation Management
Vapour control layers (VCL) play a key role in managing condensation risks and maintaining the integrity of the timber frame structure. It minimises the possibility of condensation forming within the timber frame and safeguards the integrity of the wall system. To achieve the desired insulation performance, install a VCL on the warm side of the insulation. The layer must have a vapour resistance ratio of at least 5:1 between the materials on the warm and cold side of the insulation.
Vapour Control Layer Installation
To install a vapour control layer in a timber frame wall, it is necessary to cover the external framed wall area, including rails, studs, reveals, lintels, and sills. The VCL should be securely fixed at 250mm centres to the top and bottom of the frame, at laps, and around openings.
Install the VCL in accordance with the manufacturer’s instructions to ensure proper wall construction, cavity size, and insulation type. This will help prevent moisture penetration of the timber frame wall and potential damp and mould issues. It is also crucial to follow installation guidelines for vapour control layers to ensure optimal performance and longevity.
Permeable Membranes
Permeable membranes, such as polyethylene, polypropylene, and polyurethane, are effective in reducing air infiltration, enhancing air quality, and minimising the risk of condensation. They can also aid in reducing energy costs by providing an additional layer of insulation.
When used in conjunction with vapour control layers, permeable membranes offer a comprehensive solution to manage condensation and moisture in timber frame walls. This adds to the long-term performance and durability of the timber frame structure.
Timber Frame Wall Systems: Open vs Closed Panels
Open and closed panel timber frame wall systems differ mainly in their approach to insulation. Open panels are supplied to the site without insulation, while closed panels come with insulation pre-installed in the factory.
Closed panels are frequently provided by German turnkey home suppliers and can facilitate a rapid construction. Both systems have their advantages, and the choice between them depends on the specific requirements of the homeowner or builder. The choice between open and closed panel systems can also impact construction time, with closed panels generally allowing for faster completion.
Open Panel Systems
Open panel systems feature an open panel design, providing increased flexibility in construction, as well as improved air circulation and insulation. The components of an open panel system generally include a network of wooden studs and sheathing.
The open panel system offers improved air circulation, better insulation, and increased flexibility when constructing the wall. This makes it a popular choice for many timber frame projects.
Closed Panel Systems
Closed panel systems are pre-manufactured, partially-finished panels, such as load bearing wall elements, roof trusses, floor structures, and internal studwork. These systems offer enhanced thermal performance, increased structural stability, and expedited construction time.
The factory production of these panels ensures precision engineering and adherence to performance standards, making closed panel systems a reliable choice for those seeking faster construction and superior insulation performance.
Structural Elements and Connections in Timber Frame Walls
Timber frame walls incorporate components such as wall ties, roof trusses, and cavity barriers to join the various components of the wall together, providing stability and strength.
Understanding these structural elements and connections is crucial to ensuring the proper construction and performance of timber frame walls.
Wall Ties
Connectors called wall ties are used to join the two leaves of a cavity wall, such as a timber frame wall, allowing the two parts to act as one unit, ensuring the stability of the building. Wall ties must be corrosion-resistant and able to accommodate the applicable loads, as well as any movement between the inner and outer walls.
Proper installation and distribution of wall ties in a staggered pattern are essential to maintaining the integrity of the timber frame structure.
Roof Trusses
Roof trusses are structural frames utilised to support the roof of a building. They are generally constructed from timber, and designed to transfer the load of the roof to the walls of the building. They play a vital role in the overall stability and performance of timber frame structures and must be properly integrated and secured in the timber frame wall system. Additionally, roof trusses contribute significantly to load distribution in timber frame structures, ensuring that the weight is evenly spread across the entire framework.
The trusses must be designed to meet the specific requirements of the building. This includes taking into account the size, shape, and load of the roof, as well as the type of timber used. The trusses must also be securely connected to the walls of the building.
Cavity Barriers
Cavity barriers are employed in a timber frame external wall construction to impede the propagation of fire through the cavity while concurrently permitting the building to breathe. They are usually installed in proximity to the edges of internal cavities and at junctions where the wall cavity is aligned with a building compartment wall or floor.
Cavity barriers play a crucial role in fire protection. They also assist in moisture management within timber frame walls, further ensuring the long-term performance and durability of the timber frame structure.

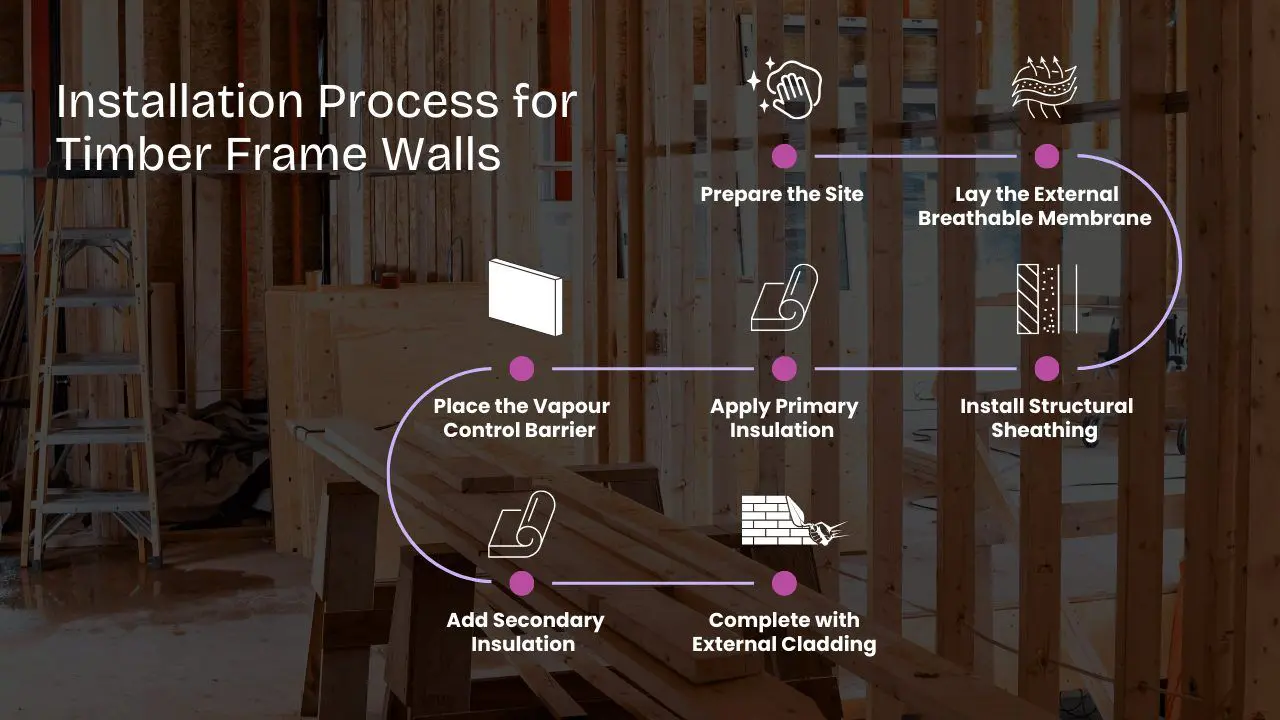

On-Site Construction and Installation
On-site construction and installation of timber frame walls require careful planning and execution to ensure the integrity and performance of the wall system. The process begins with the preparation of the site, which includes leveling the ground and setting up the foundation. Once the site is ready, the assembly of the timber frame structure can commence.
The construction process involves erecting the timber frame, which consists of vertical studs, horizontal rails, and diagonal braces. These components are assembled to form the skeleton of the wall. The choice between open panel systems and closed panel systems will influence the next steps in the construction process. Open panel systems, which arrive at the site without insulation, allow builders to install insulation on-site, providing flexibility in the choice of materials and methods. Closed panel systems, with pre-installed insulation, streamline the construction process and reduce on-site labor.
Insulation is a critical component of timber frame walls, as it enhances thermal performance and energy efficiency. The insulation is placed between the timber studs, and a vapour control layer is installed to prevent moisture from penetrating the wall. Proper installation and sealing of these components are essential to maintain the integrity of the wall system and prevent issues such as condensation and mold growth.
External cladding is the final step in the construction process. Cladding materials, such as brick, stone, or composite panels, are installed on the outside of the timber frame to protect the wall from weather elements and enhance the building’s aesthetics. The choice of cladding material can also impact the thermal performance and durability of the wall system.
By considering the specific requirements of the project, including u values and other performance standards, builders can ensure that the timber frame wall system is designed and constructed to meet the needs of the building and its occupants. Proper planning, execution, and attention to detail during the on-site construction and installation process are crucial to achieving a high-quality, energy-efficient, and sustainable timber frame structure.
Choosing a Timber Frame Supplier
Select a reputable timber frame supplier for your project to ensure the highest quality and performance of your timber frame structure. When evaluating quotations and small print, note what is and is not included.
Choose pre-manufactured panels in timber frame construction as they provide the certification required to meet Building Regulation requirements and guarantees satisfaction for your warranty provider.
Look for suppliers with third-party certifications, such as ISO (International Organization for Standardization), BBA (British Board of Agrément), or CE (Conformité Européenne), to ensure compliance with established standards and requirements.
Research customer reviews and testimonials to gain insights into your suppliers’ track record and overall reputation in the industry.
Consider each of the above factors to confidently select a timber frame supplier that will meet your project’s needs and expectations.
We now know how important it is to understand timber frame external wall construction details for anyone involved in a timber frame project. From the various components and materials used in timber frame walls to insulation options, vapour control layers, and structural elements. You are now equipped with the knowledge necessary to make informed decisions about your timber frame project.
You can confidently choose a reputable timber frame supplier, select the right insulation materials, and ensure the proper installation and performance of your timber frame structure. Embrace the benefits of timber frame construction to begin a more sustainable, energy-efficient building journey.
How thick should an external timber wall be?
For an external timber wall, the most commonly recommended thickness is 70mm. This thickness ensures adequate thermal and acoustic performance while providing enough stability for outdoor use.
How are timber framed walls constructed?
Timber frame walls are typically constructed from pre-manufactured frames. They are filled with insulation and stiffened with OSB panels, consisting of hardwood studs and braces nailed with simple butt joints to top and base plates.
The outer wall surface is usually clad with sheet material, such as plywood. This is then screwed or nailed to the stud work.
How thick is an external timber stud wall?
A timber stud wall typically ranges in thickness between 50mm and 90mm, depending on the desired thermal and acoustic performance.
The wall thickness is determined by the desired performance of the timber frame wall.
What goes on the outside of a timber frame house?
The outer surface of a timber frame house is typically clad with protective material to ensure the longevity of the structure. Popular options for cladding include brick or block, cement fibreboard, stone, metal and timber. Each offers unique advantages in terms of protection, insulation, aesthetics and budget.
Ultimately, careful consideration should be made when selecting a cladding material for a timber frame external wall construction.
