Planning Your Wired Ethernet Setup
A good plan is key for a smooth home ethernet installation. You’ll need to map out your home, choose cable routes, pick the right gear, and create a detailed wiring plan.
Assessing Your Home Layout
Start by making a simple map of your home. Mark where you want ethernet ports in each room. Don’t forget spots for TVs, game consoles, and work areas. Count how many devices you’ll connect. This helps you figure out how many ports you need.
Think about where to put your router and switch. A closet or basement often works well as a central spot. Make sure it has power nearby.
Look for existing holes or paths where you can run cables. Check your attic, basement, or crawl spaces. These areas make it easier to route wires between floors.
Deciding on the Best Wiring Routes
Pick the shortest, straightest paths for your cables. Avoid running them near power lines, which can cause interference. Stay away from water pipes too.
If you have to go through walls, plan your drill spots carefully. Check for studs, pipes, and wires first. It’s safer to drill horizontally between studs than vertically.
For multi-story homes, look for spots to run cables between floors. Closets that stack on top of each other work great. You can also use existing holes for phone or cable lines.
Selecting the Right Tools and Materials
You’ll need Cat5e or Cat6 ethernet cable. Cat6 is faster but costs more. Buy more cable than you think you need – it’s better to have extra.
Get a cable tester to check your work. You’ll also need:
- RJ45 connectors
- A crimping tool
- Wire strippers
- A cable toner (helps find wires in walls)
- Fish tape (for pulling cables through walls)
- A stud finder
- A drill with bits
Don’t forget safety gear like gloves and eye protection.
Creating a Detailed Wiring Plan
Draw a diagram showing where each cable will run. Label the start and end points of every cable. This helps you keep track as you work.
Decide where you’ll put network switches. You might need more than one if you have lots of devices or a big house.
Plan how you’ll label your cables and ports. Use a simple system like room names or numbers. This makes troubleshooting easier later.
Estimate how much cable you’ll need for each run. Add extra for mistakes and curves. It’s smart to buy 20% more than your total estimate.
Choosing and Preparing Your Cables

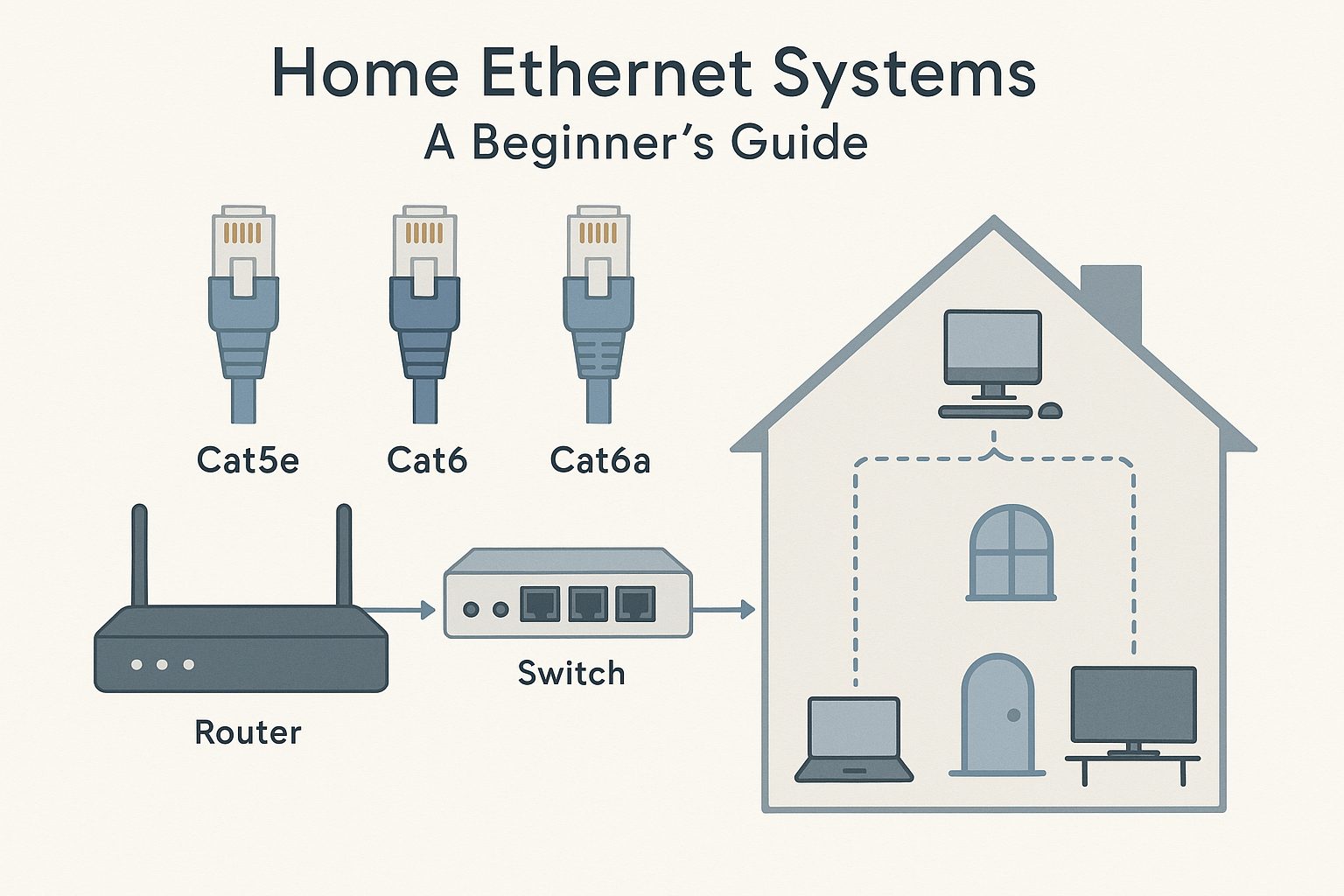

Picking the right Ethernet cables is key for a smooth home network setup. You’ll need to consider the cable type, length, and construction to get the best results.
Understanding Cable Categories and Types

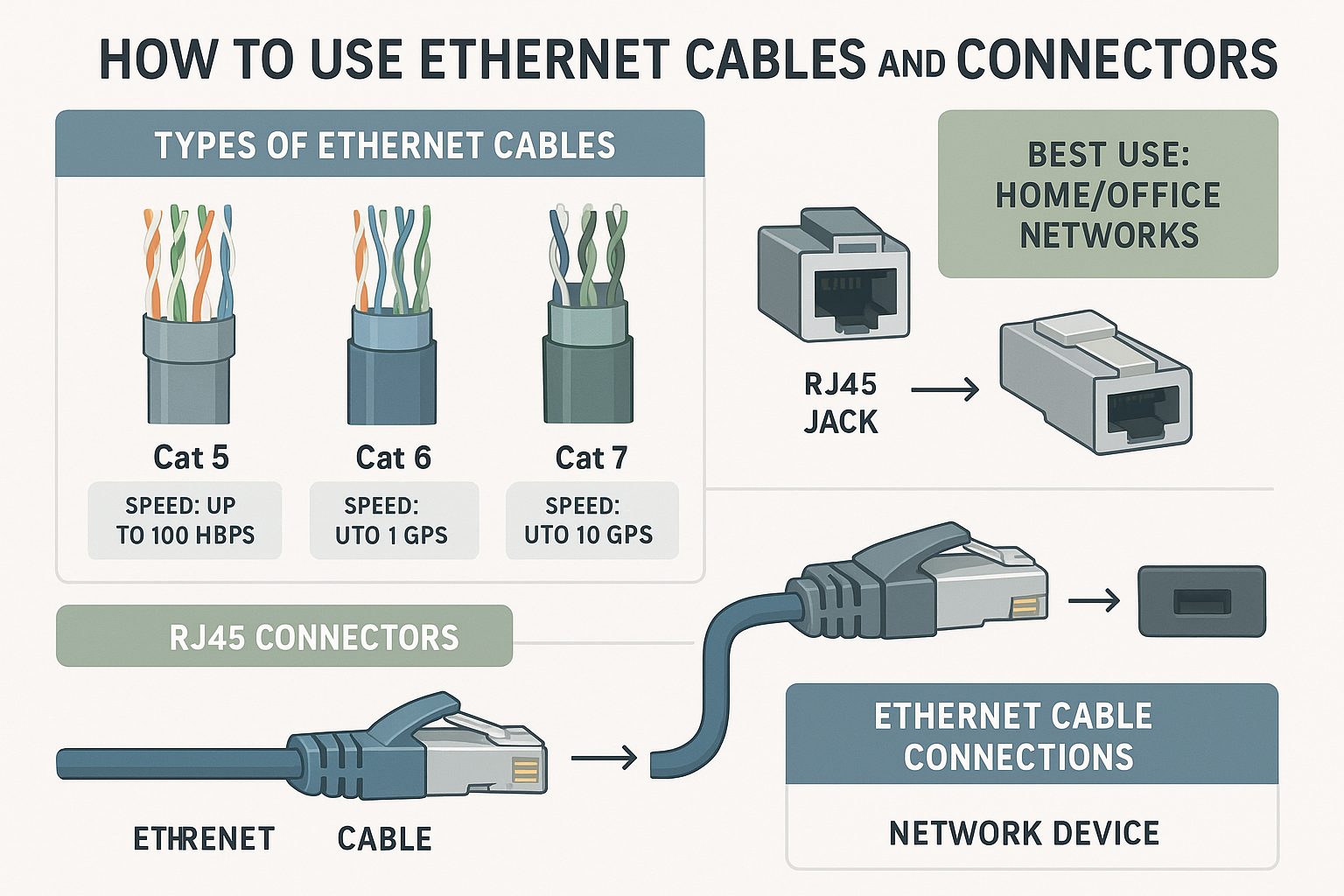

Ethernet cables come in different categories. Cat5e is common and works for most home needs. It can handle speeds up to 1 Gbps. Cat6 is faster, supporting up to 10 Gbps for short distances. Cat6a goes even further, with 10 Gbps over longer runs.
UTP (unshielded twisted pair) cables are standard for homes. They’re cheaper and easier to work with than shielded types. For most spaces, regular PVC-jacketed cables are fine. But if you’re running cables through air ducts, you’ll need special plenum-rated cables that don’t give off toxic fumes if they burn.
Solid vs Stranded Cables
You have two main choices for cable cores: solid and stranded. Solid core cables have a single copper wire for each conductor. They’re best for fixed installations in walls or ceilings. Stranded cables have multiple thin wires twisted together. They’re more flexible and better for shorter, movable connections like patch cables.
Solid core cables transmit signals better over long distances. But they can break if bent too much. Stranded cables are great for desks or equipment racks where you might move things around.
Calculating the Length of Cable Needed
To figure out how much cable you need:
- Measure the distance between your network devices
- Add extra for turns and drops from the ceiling
- Include some slack for future adjustments
A good rule is to add 10-15% to your measured length. It’s better to have a bit extra than to come up short. Remember, Ethernet has a max length of about 100 meters (328 feet) per run. If you need to go further, you’ll need to add a switch or repeater.
Make a simple map of your home and plan out your cable routes. This will help you buy the right amount and avoid waste. Don’t forget to account for any obstacles like doors or windows that might change your path.
Installing the Infrastructure
Getting ethernet cables into your walls and floors takes some work, but it’s worth it for a fast, reliable network. You’ll need to plan your route, drill holes, and protect the cables along the way.
Running Cables Through Walls and Floors

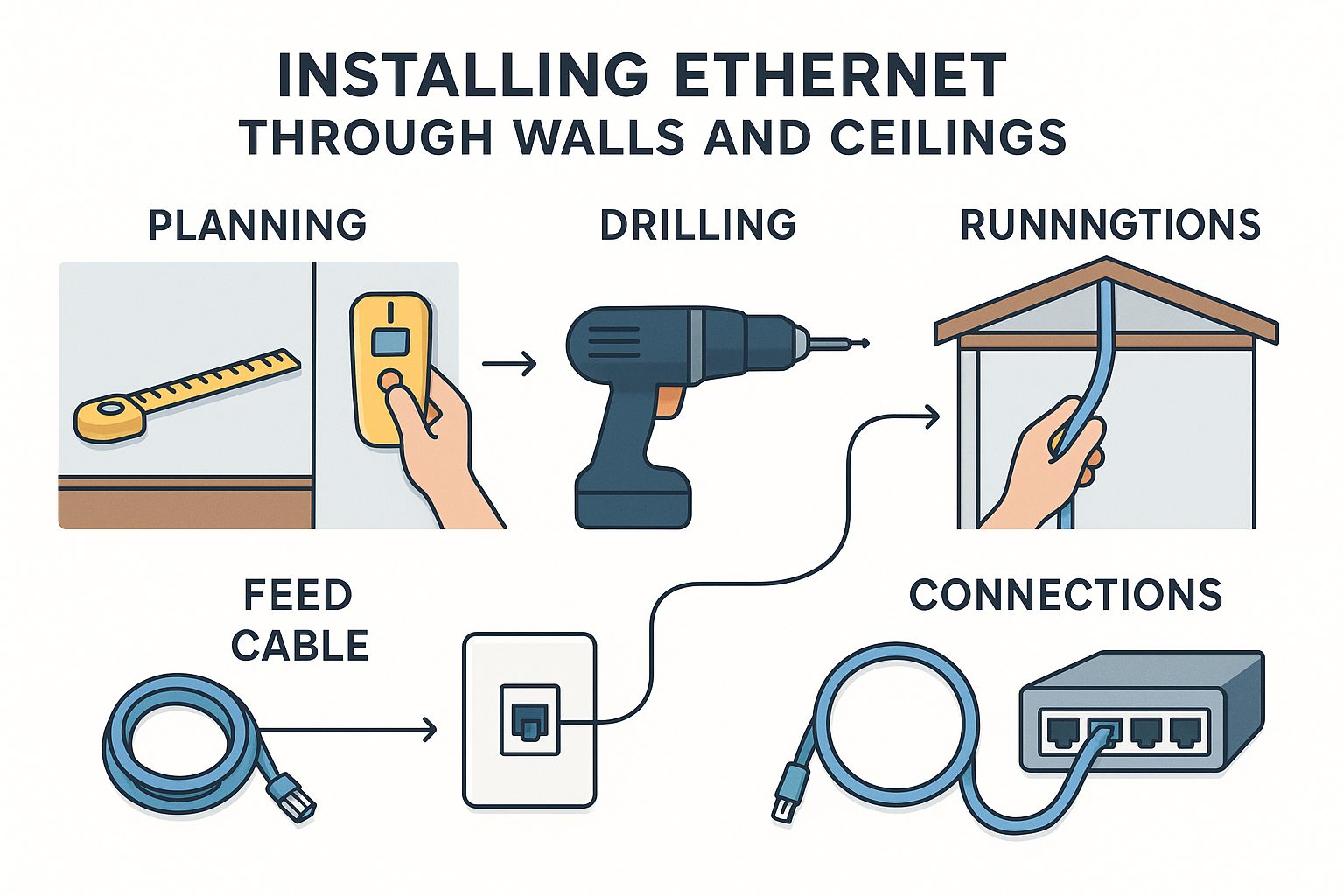

Start by mapping out where you want ethernet jacks in each room. Use a stud finder to locate wall studs and floor joists. Drill small holes between studs or joists to feed the cable through. Be careful not to hit electrical wires or pipes.
For vertical runs, drop a weighted string down the wall cavity to pull the cable up. Use fish tape to guide cables through tight spots. When going through floors, drill near the wall edge and feed the cable down.
If you have a crawl space or attic, use those to run longer cable sections. Secure loose cables with staples or clips every few feet. Leave extra slack at both ends for connecting later.
Setting Up Wall Plates and Ethernet Jacks
Cut holes in the drywall where you want ethernet ports. Install old work boxes to hold the jacks. Strip the cable jacket and punch down individual wires into the jack following the color code.
Snap the jack into the wall plate and screw it to the box. Test each connection with a cable tester before closing up the walls.
For a cleaner look, consider recessed wall plates that sit flush with the wall surface. Label each port clearly so you know what goes where.
Utilizing Conduit for Cable Protection
Conduit gives your cables extra protection, especially in unfinished spaces. Use flexible plastic conduit in walls and rigid PVC in exposed areas.
Cut the conduit to length and secure it with clamps. Thread cables through using a pull string. Leave room for future upgrades.
For outdoor runs, use weatherproof conduit and seal all joints. Bury underground conduit at least 6 inches deep. This shields cables from damage and makes replacements easier.
Consider installing empty conduit during remodeling projects. You can easily add new cables later without opening walls again.
Connecting and Testing the Network
Setting up your home Ethernet network’s final connections and testing the system are crucial steps. This ensures everything works properly and gives you the best performance.
Setting Up the Central Distribution Point
Start by setting up your central distribution point. This is where all your Ethernet cables come together. You’ll need a switch or patch panel here.
If you use a patch panel, label each port clearly. This helps you keep track of which cable goes where. Punch down each cable using a punch down tool. Make sure you follow the T568A or T568B wiring standard consistently.
For a simpler setup, you can use a switch instead. Just plug your cables directly into the switch ports.
Don’t forget to connect your modem and router to this central point too.
Wiring Ethernet Ports and Wall Jacks
Now it’s time to set up the other end of your cables. You’ll be working with wall jacks or surface-mounted sockets in each room.
For wall jacks, strip the cable and punch down the wires into a keystone jack. Follow the same wiring standard you used at the patch panel. Then, snap the keystone into a wall plate.
If you’re using surface-mounted sockets, you’ll need to attach RJ45 plugs to the cable ends. Use a crimping tool for this job. Make sure the wires are in the right order before you crimp.
Double-check all your connections. A loose wire can cause big headaches later.
Testing for Connectivity and Performance
Testing is the final step. It’s crucial to check every connection you’ve made.
Use a cable tester to check each line. This tool will show if all eight wires in each cable are connected properly. If a light doesn’t come on, you may need to re-terminate that end.
Next, plug a device into each port and check for internet access. Test your network speed at various points. This will help you spot any weak links in your setup.
If you have Wi-Fi access points, test these too. Make sure they’re providing good coverage throughout your home.
Remember to label all your cables and ports clearly. This will save you time if you need to troubleshoot in the future.
Optimizing and Securing the Network
A well-optimized and secure home Ethernet network ensures fast, reliable connections and protects your data. Let’s explore key steps to enhance your network’s performance and safety.
Maximizing Network Performance
To get the most out of your home Ethernet, start by choosing the right equipment. Pick a router that supports gigabit speeds and has enough LAN ports for your needs. Use a switch to add more ports if needed. Make sure your cables are Cat5e or better for top speeds.
Keep your network tidy with good cable management. Use a patch panel to organize connections and make troubleshooting easier. Label your cables clearly to avoid confusion.
Check your internet plan and make sure it matches your needs. If you’re not getting the speeds you’re paying for, contact your provider. You can test your speed using online tools.
Integrating Wired and Wireless Networks
Your home network likely uses both wired and wireless connections. To make them work well together, place your router in a central spot. This helps Wi-Fi reach all areas.
Use Ethernet for devices that need the fastest, most stable connection. This includes gaming consoles, smart TVs, and desktop computers. Save Wi-Fi for mobile devices and areas where running cables is tough.
Consider adding Wi-Fi access points in areas with weak signals. These can connect to your wired network to boost coverage. Some access points use Power over Ethernet (PoE), which simplifies installation.
Implementing Network Security Measures
Protect your network by changing default passwords on all devices. Use strong, unique passwords for your router, switches, and access points. Enable WPA3 encryption on your Wi-Fi network if your devices support it.
Set up a guest network for visitors. This keeps them separate from your main network and protects your personal devices and data. Many routers have this feature built-in.
Keep your router’s firmware up to date. Updates often include security patches that protect against new threats. Enable the firewall on your router to block unwanted traffic.
Consider using a virtual private network (VPN) for extra privacy when browsing online. Some routers let you set up a VPN for your whole network at once.
