A tool shadow board is a visual management system that gives every item a clearly marked home. Each tool sits within a colour-coded silhouette cut or painted directly onto a backing panel, so anyone can spot at a glance which items are present and which are missing.
Key Points
- A tool shadow board is a visual management system using colour-coded silhouettes to indicate correct tool placement, supporting 5S methodology and lean manufacturing principles.
- Shadow boards reduce search time, improve health and safety compliance, and enable quick audits to identify missing or misplaced equipment.
- Materials range from foam inserts and food-safe polyethylene to powder-coated metal, with options tailored to hygiene-critical, industrial, and cleanroom environments.
- Bespoke design services allow organisations to create custom layouts matched to specific tool sets, workflows, and sector requirements.
What Is a Tool Shadow Board?
This approach stems from 5S and 6S lean manufacturing principles, specifically the ‘Set in Order’ phase that assigns fixed locations for equipment. Unlike loose storage in drawers or toolboxes, a shadow board turns organisation into a passive audit. Walk past the panel and you immediately know whether a spanner, wrench or socket set has been returned.
The system works well for standard hand tools, but it also suits bespoke machine change parts and specialist equipment. Fully stocked shadow boards can be configured for entire workshops, ensuring staff have everything they need from day one.
Because the silhouettes rely on shape and colour rather than written labels, they overcome language or literacy barriers. This universal recognition helps mixed teams follow the same standards without confusion.
The result is lower replacement costs, reduced downtime spent hunting for missing items, and clearer accountability across shifts.
Benefits and Applications of Shadow Boards
Shadow boards are organised tool-storage systems that reduce wasted time and improve workplace efficiency. Their main benefit is simple: when every tool has a visible, marked home, workers spend less time hunting through drawers and more time on productive tasks.
In busy UK manufacturing plants and maintenance depots, shared equipment often goes missing or ends up in the wrong place. Research into industrial environments shows that workers in disorganised tool areas lose significant time each shift simply searching for what they need. Shadow boards tackle this problem by giving each item a clear outline or colour-coded slot. A quick glance shows what’s there and what’s missing, making stock checks faster and more reliable than rummaging through cluttered cabinets.
These boards fit neatly into 5S and Lean management programmes, which focus on tidiness, standardisation and continuous improvement. By keeping work centres orderly, shadow boards also support health and safety compliance—loose tools left on benches or floors create trip hazards and slow down emergency responses.
While shadow boards are popular in building and manufacturing, they can be customised for any industry where tool organisation matters, such as automotive, gardening, or even culinary arts. Durable versions made from foam or heavy-duty materials suit high-traffic settings like train depots, where equipment sees constant use across multiple shifts.
Industries That Rely on Shadow Boards
Shadow boards are visual tool-storage systems used across a wide range of industries to improve organisation, safety and accountability. Manufacturing, healthcare, food production and logistics all rely on them daily.
Food and beverage manufacturing uses colour-coded shadow boards to separate utensils by zone, preventing allergen cross-contact and meeting BRCGS audit standards. Automotive and aerospace engineering depend on precise tool control; a missing spanner on an aircraft assembly line can become dangerous Foreign Object Debris. Pharmaceutical and healthcare settings require strict contamination protocols, so many facilities now specify thru-board hooks and magnetic substrates that are easy to clean.
General manufacturing, logistics centres and facilities maintenance teams use shadow boards to track spanners, torque wrenches and cleaning equipment shift by shift. In construction and timber processing, boards help account for heavy equipment and reduce site hazards. High-traffic warehouses often install boards near loading bays for last-mile maintenance tools.
Companies following 6S or Kaizen frameworks treat shadow boards as a frontline defence against motion waste—the time lost hunting for misplaced items. The boards act as a facility’s visual heartbeat, making missing tools obvious at a glance.
Types of Tool Shadow Boards
Tool shadow boards come in several configurations, each suited to different workplace needs. The main types include wall-mounted, mobile trolley, freestanding and specialised cleaning station boards.

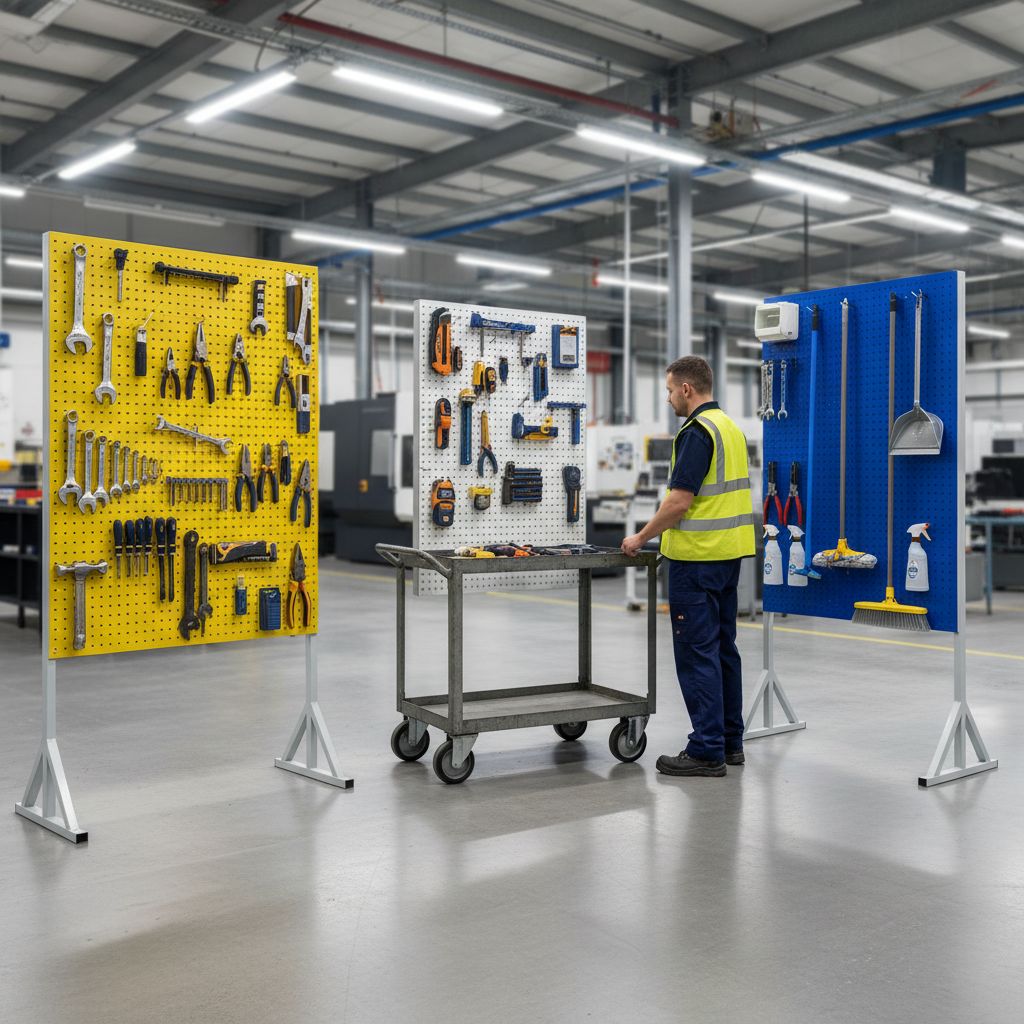

Wall-mounted boards work well for fixed workstations and tool cribs where equipment stays in one location. Mobile shadow boards sit on trolleys, allowing maintenance teams to wheel their tools directly to job sites. Freestanding A-frame boards offer flexibility when wall drilling is not practical.
Cleaning station boards hold hygiene equipment such as brooms, mops and squeegees, keeping them separate from production tools. Machine-specific change-part boards store bespoke components needed during production changeovers, reducing downtime by keeping everything ready to hand.
Many UK workplaces now use colour-coded boards to prevent cross-contamination between departments—particularly useful in food manufacturing or pharmaceutical settings. Some suppliers offer fully stocked boards complete with tools and fixings.
Specialist variants include transparent boards for high-security environments and anti-ligature designs for mental health facilities. Modern boards often integrate with 6S principles, incorporating spaces for PPE and emergency equipment alongside standard tools.
Shadow Board Materials
Shadow board materials are the substrates and inserts used to construct tool-organisation panels in workplaces. The right choice depends on your environment, the weight of tools and any hygiene regulations that apply.
High-density polyethylene (HDPE) and polypropylene suit food-processing areas. A minimum thickness of 5mm in HDPE helps prevent warping during thermal cleaning cycles. These plastics are non-porous, so they meet UK food-safety standards when paired with through-board hook fixings that eliminate dirt traps behind tools.
Powder-coated steel handles heavier implements in engineering workshops, while Dibond (aluminium composite) offers rigidity without excessive weight for high-traffic zones.
For lighter items, dual-layer foam inserts in contrasting colours support 5S visual management by making any missing tool instantly obvious. Anti-microbial PVC overlays add bacterial resistance for clinical or food environments and can be colour-coded to align with HACCP contamination-prevention schemes.
Timber remains an affordable option but absorbs moisture and may splinter, making it unsuitable for wet-processing or hygiene-critical settings.
How to Create a Custom Shadow Board
A custom shadow board is a purpose-built storage panel where each tool has a marked outline showing exactly where it belongs. Building one properly starts with auditing your existing tools and identifying which items need dedicated storage based on how often they are used.
Begin by mapping out your workflow. Arrange tools in the order you actually use them during a task, reading left to right or top to bottom. This layout reduces wasted movement and keeps operations efficient—a principle drawn from 5S Lean methodology.
Material selection matters more than many people realise. For food production or pharmaceutical settings, specify anti-microbial or chemical-resistant substrates to meet hygiene standards. Dual-layer foam or bright vinyl backing creates high-contrast silhouettes, making missing tools obvious at a glance.
Colour-coding adds another layer of control. In environments handling allergens or hazardous chemicals, different coloured boards or outlines prevent cross-contamination by keeping equipment sets separate.
Work with a specialist supplier for precision cutting and finishing. They can produce clean outlines that match your exact tool dimensions. Finally, build in ‘missing item’ visual cues—such as a contrasting background colour—so end-of-shift audits take seconds rather than minutes.
Bespoke Shadow Board Design Services
Bespoke shadow board design services are specialist offerings that create custom tool-storage panels matched precisely to your equipment and working environment. Rather than forcing tools into generic off-the-shelf layouts, a bespoke approach maps each item to its ideal position based on how often it is used and who needs access.
The process typically begins with a digital proofing stage. You receive a one-to-one scale drawing showing exactly where every tool will sit, allowing you to request changes before manufacturing starts. This accuracy matters for organisations following LEAN, Six Sigma or 5S/6S programmes, where shadow boards serve as audit-ready focal points. A missing spanner or screwdriver becomes immediately visible, supporting both compliance checks and a culture of workplace ownership.
UK-based manufacturers can often deliver finished boards within five to seven working days of proof approval. That short lead time makes it practical to order specialist configurations for food-grade areas, cleanrooms or chemically demanding environments without lengthy delays.
Design options extend to branding, department colour coding and substrate selection. Whether you need foam inserts, HDPE panels or stainless-steel fixtures, each board can be built to withstand the specific stresses of its location.
Shadow Board FAQs
A shadow board is a visual storage system that displays the exact outline of each tool, making missing items obvious at a glance.
How do I choose the right size shadow board for my workspace?
Measure the wall space available and lay out your tools on a flat surface first. Allow roughly 50mm clearance around each item so outlines remain distinct. Most suppliers offer boards from 600mm to 1,500mm wide; pick a size that holds your daily-use tools without cramming them together.
What maintenance do shadow boards require?
Routine upkeep is straightforward. Wipe the board surface weekly with a damp cloth to remove dust and oil. Check fixings monthly to ensure the board stays secure, and inspect foam or clip holders for wear. Replacing worn holders promptly keeps tools seated properly.
Can shadow boards be updated if my tool inventory changes?
Yes. Many boards use modular foam inserts or re-cuttable backing, so you can add, remove, or reposition outlines as your kit evolves. Some manufacturers supply additional foam sheets or offer re-cutting services to match new layouts.
Are shadow boards suitable for outdoor or wet environments?
Standard MDF or plywood boards are best kept indoors. For damp or outdoor settings, look for boards made from HDPE plastic, powder-coated steel, or marine-grade materials. These resist moisture and comply with UK health and safety guidance on slip and corrosion hazards.
